Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station

1 Adet
MOQ
1 USD
fiyat
Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Model Adı: Netsure 731 CC2-X2
Branda: Vertiv
Giriş: 380-415V AC, 3W+N+PE, 74A, 50/60Hz
Çıkış: -48V DC, Maksimum 600A, 36,0kW
Float Gerilimi: 53.5V
Eşitleme gerilimi: 56.4V
Temel bilgiler
Menşe yeri: CN
Marka adı: Vertiv
Sertifika: CE
Model numarası: Netsure 731 CC2-X2
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kartonlar
Teslim süresi: 8-10 hafta
Ödeme koşulları: L/C,T/T
Yetenek temini: Aylık 3000 Adet
Ürün Açıklaması
Deacription

The Vertiv™ NetSure™ 731 CC2 is a standalone indoor DC power system designed to provide unmatched reliability, availability, and efficiency to protect critical edge equipment, thereby ensuring vital round-the-clock network

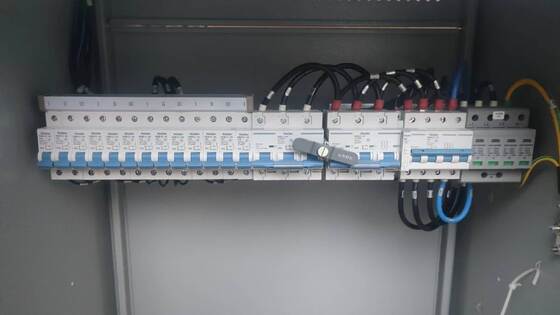

continuity. It embodies functions such as input distribution and output critical & non-critical distribution along with surge protection devices. An integrated, sophisticated controller enables remote monitoring capabilities and ensures overall system integrity.

Technical Specifications
Parameter Details
Model NetSure 731 CC2-X2
Input 380-415V AC, 3W+N+PE, 74A, 50/60Hz
Output -48V DC, Max 600A, 36.0kW
Float Voltage 53.5V
Equalizing Voltage 56.4V
Load Low Voltage Disconnect (LLVD) 44.0V
Battery Low Voltage Disconnect (BLVD) 43.2V
Battery Strings Supported 2 sets
Efficiency ≥96% (industry-leading for energy savings)
Topology Hot-swappable rectifier modules (up to 12 units, expandable)

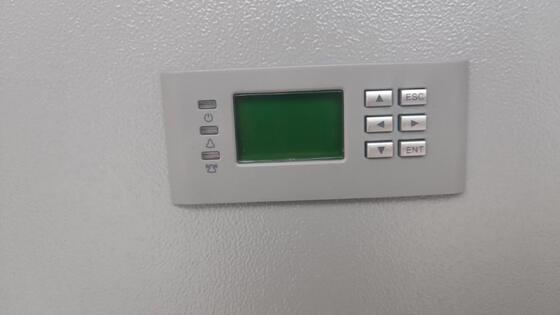

Control & Monitoring Digital LCD controller with full system diagnostics
Product Images

Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station 0

Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station 1

Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station 2

Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station 3

Vertiv NetSure 731 CC2-X2 48V 600A 36kW DC Power System Telecom Rectifier Cabinet for Base Station 4

Comprehensive Telecom Solutions

Our solutions are designed to meet the diverse needs of telecommunication companies worldwide. We conduct detailed site surveys, create professional cost-effective plans aligned with business objectives, and provide 24/7 technical support and maintenance services to ensure smooth telecom network functioning.

Frequently Asked Questions
Can I get product samples and their corresponding prices?
You can obtain samples. The cost of samples is based on the regular price, and you'll be responsible for covering the shipping charges.
How do you resolve quality-related problems?
With over 10 years of industry experience, we value our reputation highly. When a quality problem arises, we conduct detailed investigations and honor our contracts to resolve issues. Our service team provides excellent support.
How reliable is the quality of your products?
Our products are 100% authentic, brand new, and originally packaged. Each product is meticulously tested before shipping to meet stringent quality benchmarks.
For how long is the product guaranteed?
Our products come with a 1-year warranty, during which we address any quality problems related to manufacturing defects.
What's the process for handling defective products?
During the warranty period, if you find any product quality problems, we cover the cost of returning and replacing substandard items.
