Ana sayfa /Ürünler/DC AC İnvertörler/Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom

Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom

Inquiry
fiyat
Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Puanlar ve İncelemeler Fiyat talebi
Özellikleri
Teknik Özellikler
Modül: T621D30201
Dielektrik dayanım DC/AC: 4300 Vdc
Çalışma T°: -20°C ile 65°C arasında
Depolama T°: -40°C ila 70°C
Gerilim aralığı: 150 - 293 VAC
Kapatma: 1600 W
Güç faktörü: > 0.99
nominal çıkış gücü: 3 kVA / 2,4 kW @ 230 Vac
Vurgulamak:

12KVA Inverter

,

Pure Sine Wave Telecom Power System

,

Modular Scalable Bravo 25
Temel bilgiler
Menşe yeri: Çin
Marka adı: CE+T
Model numarası: Bravo 25 - 48/230-277
Ödeme & teslimat koşulları
Ambalaj bilgileri: ahşap kartonlar
Teslim süresi: 6-8 hafta
Ödeme koşulları: T/T
Yetenek temini: Ayda 500 takım
Ürün Açıklaması
Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit
Product Overview
The BRAVO 25 - 48/230-277 is a compact and scalable modular inverter delivering pure sine wave AC output. This system provides exceptional AC backup solutions when integrated with DC power systems, utilizing cutting-edge technology for maximum energy efficiency in a compact form factor.
Advanced Technology Features
ECI technology eliminates all single points of failure with full scalability, supporting up to 32 modules in parallel. Achieves high efficiency up to 96% in AC to AC conversion and above 93.7% in DC/AC conversion, significantly reducing operating costs. Systems can be built up to 1.35 MVA capacity.
Inview Monitoring & Control
Our advanced Inview monitoring solution features comprehensive monitoring capabilities to enhance customer experience. Includes advanced scripting tools for customized infrastructure adaptation and control features including comprehensive battery management systems.

Applications
Ideal for all business-critical applications and various AC load types. Modular, scalable design with hot-swappable inverter modules ensures low Mean Time to Repair (MTTR), reduced service costs, and accommodates future expansion requirements.

Key Features
  • Extra AC input for increased efficiency in double conversion operations
  • Wide AC input range up to 293 Vac L-N
  • Up to 12 kVA capacity in 2RU - 19-inch form factor
  • Scalable up to 1.35 MVA using additional synchronization devices
  • Compatible with 1P or 3P infrastructure configurations
  • Full compatibility with Inview S, X and GW monitoring systems

Technical Specifications
Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 0

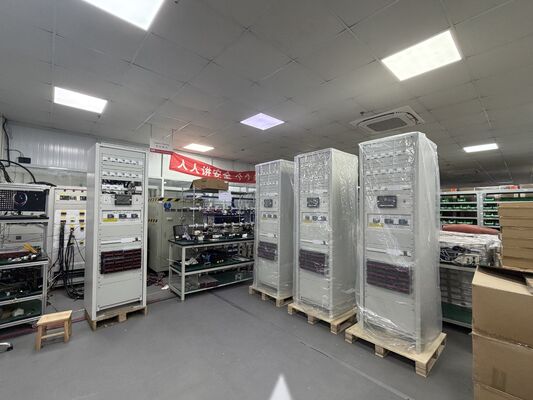

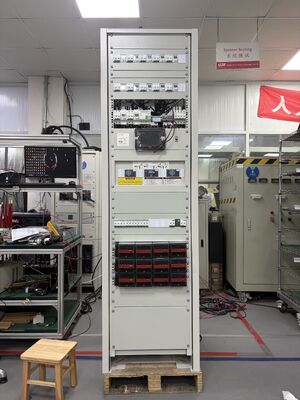

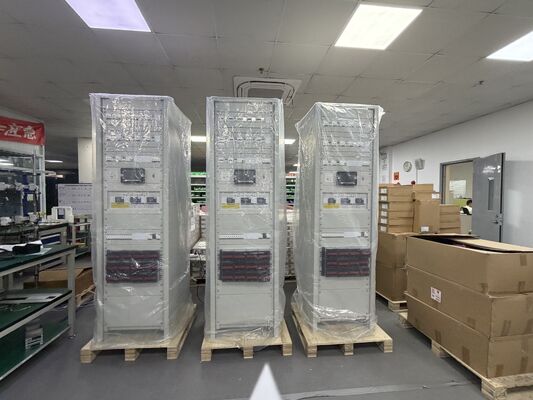

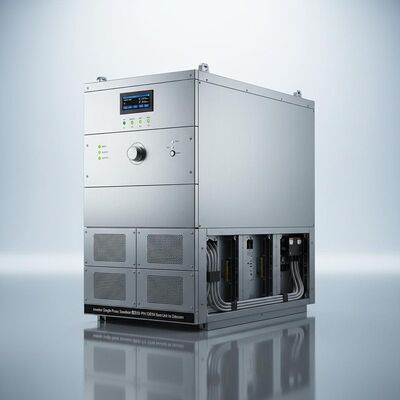

Product Display
Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 1Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 2Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 3Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 4Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 5    Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 6 Inverter Single Phase Standard System BRAVO 25 48/230 1PH 12KVA Base Unit for Datacom 7
