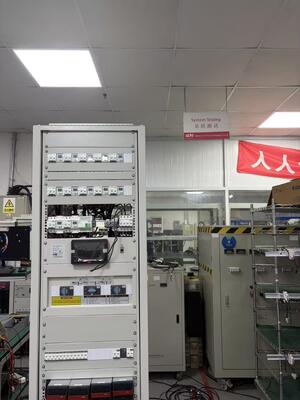

Name: Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: Sierra 25 - 110/230-277
Price: 1 USD
Availability: InStock

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

MOQ

1 USD

fiyat

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Marka: CE+T

Model numarası: Sierra 25 - 110/230-277

Ürün Adı: Dönüştürücüler /UPS

Parça No.: T721D50201

AC çıkış voltajı: 110VDC

AC Giriş Verileri: 230 Vac / 11.8 A, 240 Vac / 11.0 A ve 277 Vac / 9.5 A

DC Giriş Verileri: 110 Vdc (90 - 150 Vdc)

Verimlilik: DC/AC: > %93,7

Verimlilik: AC/AC: > %96 / > %93,7 / > %93,7

GW: 6kg

Temel bilgiler

Menşe yeri: CN

Marka adı: CET

Sertifika: CE UL

Model numarası: Sierra 25 - 110/230-277

Ödeme & teslimat koşulları

Ambalaj bilgileri: ahşap kartonlar

Teslim süresi: 6-8 hafta

Yetenek temini: 500 set / ay

Fotoğraf Galerisi

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000

Ürün Açıklaması

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 0

CE+T Sierra 25 Bidirectional Industrial Power Converter 2.7kW–2MW Sierra 25 - 110/230-277 T724D50010

Description:

Sierra 25 – 48/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

The module can be integrated in small or large cabinets to reach up to 2 MW.

With our new Inview S monitoring, you can benefit from a unique experience.

The total output power per module is 2.7 kW, limited to 2.4 kW for each AC or DC port.

Key Features:

Secure AC & DC loads;
Many innovative applications;
Compatible with Inview S;
Modularity: from 2.7 kW to 2 MW;
From small to large systems.

Versions:

4 modules can be integrated into 2U high shelves to provide up to 10.8 kW (AC + DC)

Parameters:

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 2

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 3

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 4

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 10

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 11

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 14

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 15

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 16

Modular High-Density Power: CE+T Sierra 25 Hot Swappable Bidirectional Converter Sierra 25-110/230-277 T724D50000 17
