STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static

1pcs
MOQ
USD 1
fiyat
STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Model: STS 32AUF-LTS32-1P
Rated voltage: 220Vdc
Giriş Voltaj Aralığı (VAC): 150 ~ 300VAC
rated frequency (Hz): 50/60HZ
Güç faktörü: 0.8 ~ 1.0 kurşun veya gecikme
Efficiency(100%linear load): 98%
Munterofrsh: 2 poles
Depolama sıcaklığı: -40~70°C
humidity: 5~95%,no condensation
altitude: 3000m
Vurgulamak:

Single Phase automatic switching power supply

,

Dual Input automatic switching power supply

,

Static automatic switching power supply

Temel bilgiler
Menşe yeri: Çin
Marka adı: Custom -made
Sertifika: CE
Model Number: Custom made
Ödeme & teslimat koşulları
Packaging Details: wooden cartons
Teslim süresi: 1-2 hafta
Ödeme koşulları: T/T
Supply Ability: 3000 pieces per month
Ürün Açıklaması

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 0

The LTS™ is a single-pole automatic transfer device with the capacity of 10/16/32 A. It performs the core functions of detection and transfer in the dual-bus system composed of two ways of AC power, and is used in the high-end uninterruptible power supply applications that require high power supply reliability.


Technical Parameters:


Technical indicators

project

(10A/16A)Specifications

32A indicator

enter

input source

Twoinput sources

Input method

1Φ+N+PE

Rated voltage

220/230Vac

Ratedfrequency

50/60Hz

voltage range

150~300Vac

Frequency range rated frequency

±5Hz

Voltage distortion

<10%

output

power factor

0.75~1.0 Leading or lagging

0.8~1.0 Lead or Lag

Overload capacity

125%,30min

Efficiency(100%linear load)

99%

98%

switch

Munterofrsh

2 poles

Automatic switching interval

<6ms(typical),<11ms(maximum)

Envlironmental parameters

project

normal range

wekig tarperue

0~40℃

storage temperature

-40~70℃

relative humidity

5~95%,no condensation

altitude

3000m

Mechanical parameters

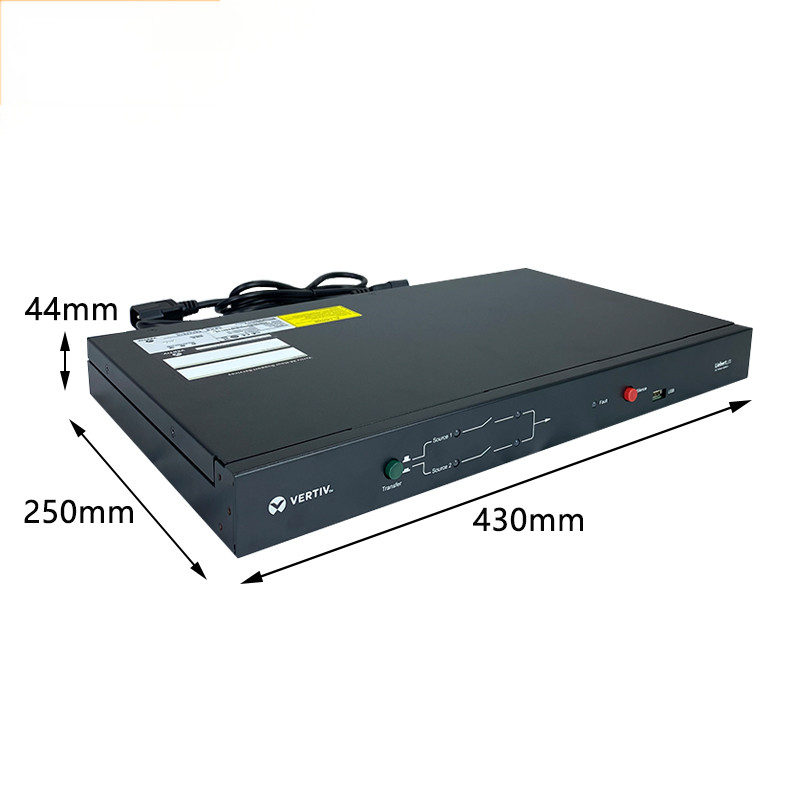

Dimensions(height x width x depth)

weight



ahtacldàaapfonalacure

44mm×430mm×250mm(10A/16A)

4.5kg

5kg

84mm×430mm×340mm(32A)

5kg

6kg


STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 1

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 2

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 3

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 4

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 5


STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 6

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 7

STS 32AUF-LTS32-1P Automatic Switching Power Supply Single Phase Dual Input Static 8
