H2: Case Background and Site Constraints

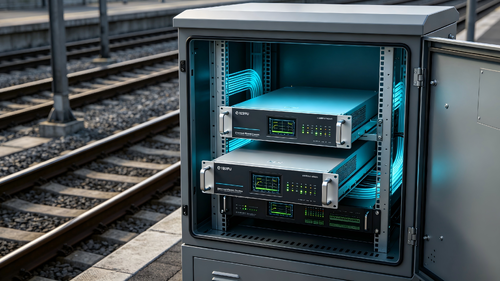

In rail transit signaling, axle-box communications, and trackside monitoring infrastructure, a highly reliable AC uninterrupted power supply serves as the critical anchor for operational safety. This case study was implemented at an outdoor cabinet node along a mass transit line in South America. The onsite environment presented severe engineering challenges: the internal layout of the cabinet was highly restricted (space deficit), and due to poor trackside ventilation, summer temperatures inside the enclosure frequently spiked close to 60°C (thermal strain and poor dissipation). Legacy monolithic UPS systems were incompatible due to their bulky footprint and elevated failure rates under elevated heat, failing to meet the industry's parametric benchmarks for redundancy and long-term uptime.
H2: Customer Pain Points Analysis
- Severe Spatial Restrictions: The internal layouts of outdoor signaling cabinets were already highly integrated, leaving zero margin for legacy tower or large rack-mounted power hardware.
- Thermal Management Failures: Poorly ventilated trackside enclosures exposed conventional inverters to over-temperature de-rating, threatening sudden power failures across signaling nodes.
- Difficult Maintenance Logistics: Trackside stations are geographically dispersed. Any environment-driven hardware puncture would lead to prolonged Mean Time to Repair (MTTR), directly jeopardizing train scheduling safety.
H2: Parametric Technical Solution Based on Bravo 25
To counteract these legacy bottlenecks, the engineering team bypassed conventional power topologies, deploying a modular inverter system configured with the Bravo 25 - 48/230-277. Backed by rigorous technical specifications, the onsite deployment delivered definitive engineering stability:
- 2RU Compact Structural Layout: Utilizing a standard 19-inch rack-mounted form factor, each inverter module weighs just 4.3 kg. Achieving high-density power integration within a mere 2RU envelope, the system slotted seamlessly into the confined signaling cabinets, completely resolving space deficits.
- 96% High Efficiency Eases Thermal Strain: Powered by Enhanced Cycle Inverter (ECI) technology, the system achieves an AC-to-AC conversion efficiency exceeding (96%) in EPC mode. This minimized direct power losses and self-heating, fundamentally mitigating heat accumulation in the poorly ventilated enclosures.
- 4300 Vdc Dielectric Strength Counters Grid Surges: Mass transit catenary lines suffer frequent high-voltage transients. The inverter delivers a dielectric strength (DC/AC) of 4300 Vdc, introducing a high-standard physical isolation barrier that insulates critical signaling loads against overvoltage power failures.
- 0-Second Transfer Time Minimizes System Anomalies: During dynamic transfers between the primary grid and the 48 Vdc battery storage banks, both the max voltage interruption and total transient duration are strictly 0 seconds. This pure sine wave, zero-interruption capability guarantees zero data drops during utility blackouts.
- Aluzinc Casing and 240,000-Hour MTBF: The chassis shell is stamped from corrosion-resistant Aluzinc steel, adhering to GR3108 Class 2 outdoor standards. Measured via MIL-217-F at 30°C ambient temperature and 80% load, the system achieves an MTBF of 240,000 hours, ensuring long-term physical-chemical stability across a wide temperature window (-20°C to 65°C).
H3: Operational and Engineering Specifications Summary
+-----------------------------------+-----------------------------------------+
| Operational Metric | Parametric Value |
+-----------------------------------+-----------------------------------------+
| Physical Footprint | Standard 19-inch Rack / 2RU Height |
| AC-AC Efficiency (EPC Mode) | > 96% |
| Dielectric Strength (DC/AC) | 4300 Vdc |
| Voltage Interruption / Transfer | 0 seconds |
| Chassis Material Standard | Aluzinc steel / RoHS Compliant |
| Operating Temperature Range | -20°C to 65°C |
+-----------------------------------+-----------------------------------------+
H2: Operational Insights and Conclusion
This deployment demonstrates that in high-stakes B2B industrial tracks like rail transit, where space, ventilation, and electrical isolation are uncompromisable, implementing modular inverter technology with high conversion efficiency (>96%) and robust dielectric barriers (4300 Vdc) neutralizes environmental degradation risks. The core architecture supports parallel configurations of up to 32 modules, allowing technicians to replace components live via hot-swapping without dropping the critical AC load. This reduces MTTR to minutes, successfully transforming legacy reactive maintenance into data-driven, proactive defense.
